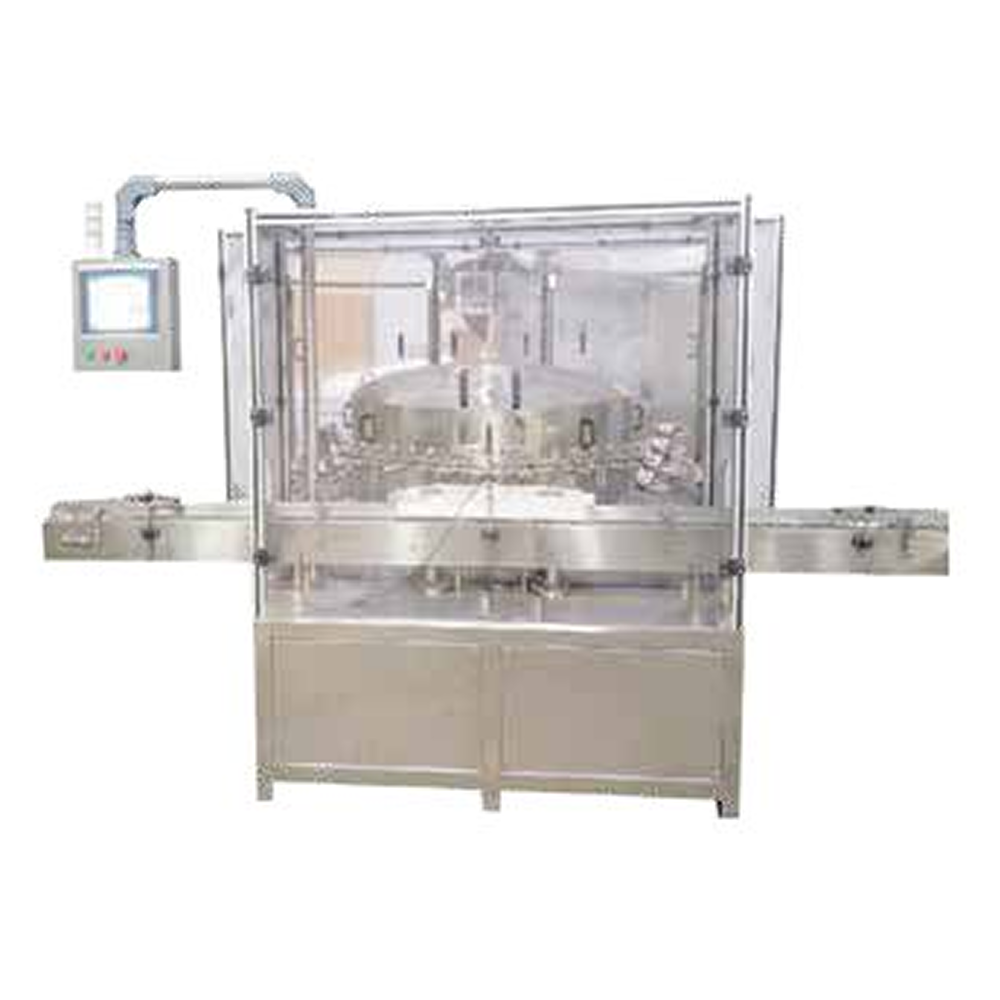

AUTOMATIC ROTARY BOTTLE WASHING MACHINE

Atria’s Automatic Rotary Bottle Washing Machine is a high-speed, fully automatic bottle cleaning system designed for internal and external washing of bottles before filling operations. The rotary indexing mechanism ensures continuous bottle movement through multiple washing stations, delivering efficient and uniform cleaning performance.

The system utilizes a combination of compressed air and water rinsing cycles to remove dust particles and contaminants, ensuring bottles are hygienically prepared for pharmaceutical filling lines. Engineered with cGMP-compliant stainless steel construction and PLC-based automation, the machine integrates seamlessly with unscrambler, filling, and capping systems.

Technical Data

Products Description

Specification	APMRBW-60	APMRBW-80	APMRBW-120
Output Capacity	Up to 60 BPM	Up to 80 BPM	Up to 120 BPM
Machine Type	Rotary Continuous	Rotary Continuous	Rotary Continuous
Washing Media	Water + Air	Water + Air	Water + Air
Bottle Diameter Range	25 – 90 mm	25 – 90 mm	25 – 90 mm
Bottle Height Range	50 – 200 mm	50 – 200 mm	50 – 200 mm
Air Pressure Requirement	5 – 7 kg/cm²	5 – 7 kg/cm²	5 – 7 kg/cm²
Water Pressure Requirement	1 – 2 kg/cm²	1 – 2 kg/cm²	1 – 2 kg/cm²
Air Consumption	Approx. 300–400 LPM	Approx. 300–400 LPM	Approx. 400–600 LPM
Main Motor	1.5 HP	2 HP	3 HP
Power Supply	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz
Conveyor Height	850 ± 25 mm	850 ± 25 mm	850 ± 25 mm
Frame Construction	SS304	SS304	SS304
Product Contact Parts	SS304 / SS316 (Optional)	SS304 / SS316 (Optional)	SS304 / SS316 (Optional)
Control System	PLC + HMI	PLC + HMI	PLC + HMI
