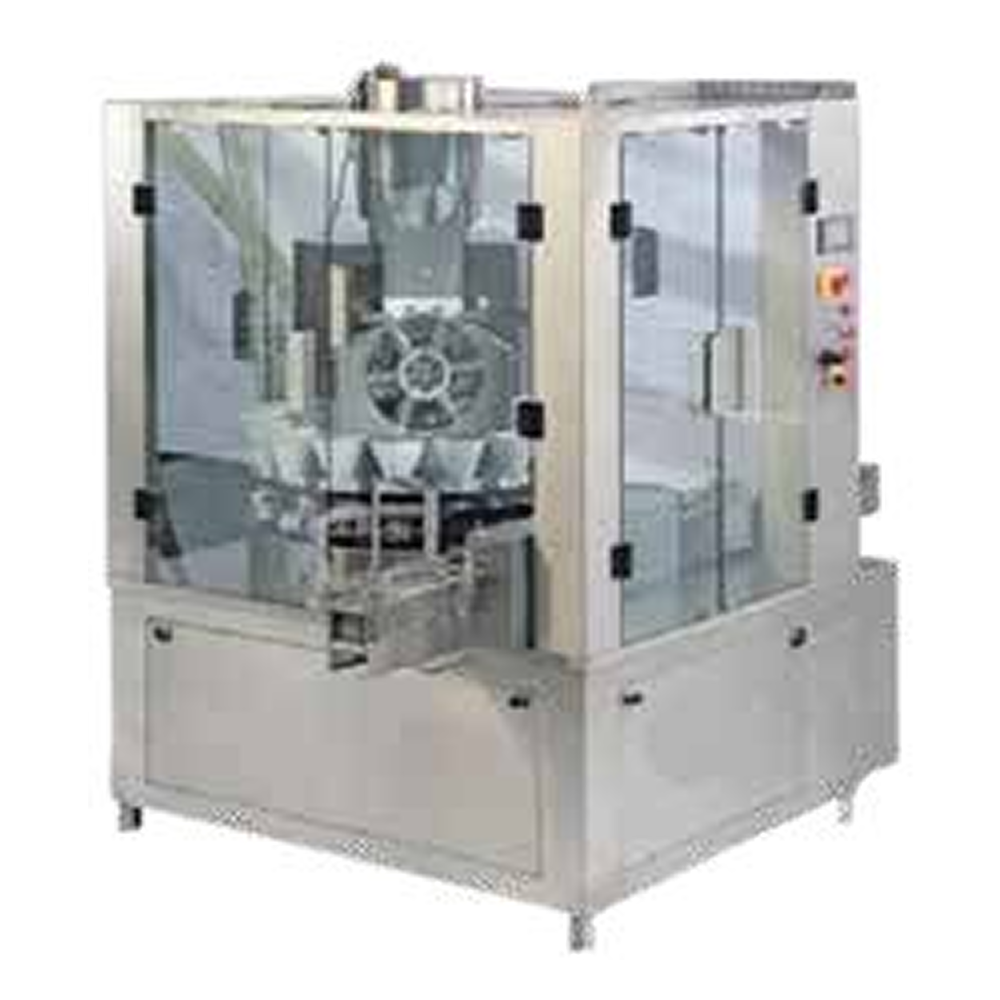

DRY SYRUP POWDER FILLING MACHINE

Atria’s Dry Syrup Powder Filling Machine is a high-precision powder dosing system specifically engineered for pharmaceutical dry syrup and antibiotic powder bottling applications. The machine operates on a vacuum-assisted powder wheel / auger combination mechanism, ensuring uniform and accurate filling with minimal dust generation and product loss.

Designed for high-speed pharmaceutical production lines, the system ensures smooth bottle indexing, precise powder transfer, and stable dosing performance. The machine is constructed as per cGMP standards using SS316 product contact parts and PLC-based automation for consistent and validated production.

Technical Data

Products Description

Specification	APMPF-60	APMPF-120	APMPF-240
Output Capacity	60 – 80 BPM	100 – 120 BPM	200 – 240 BPM
Filling Principle	Vacuum + Powder Wheel	Vacuum + Powder Wheel	Vacuum + Powder Wheel
Fill Weight Range	1 – 100 gm*	1 – 100 gm*	1 – 100 gm*
Filling Accuracy	±1% (Depending on Product)	±1% (Depending on Product)	±1% (Depending on Product)
Number of Filling Heads	12	16	24
Powder Type	Free Flowing / Semi-Free Flowing	Free Flowing / Semi-Free Flowing	Free Flowing / Semi-Free Flowing
Bottle Diameter Range	25 – 90 mm	25 – 90 mm	25 – 90 mm
Bottle Height Range	50 – 150 mm	50 – 150 mm	50 – 150 mm
Main Motor	1.5 HP	2 HP	3 HP
Vacuum Pump	2 HP	2 HP	3 HP
Power Supply	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz
Conveyor Height	850 ± 25 mm	850 ± 25 mm	850 ± 25 mm
Product Contact Parts	SS316	SS316	SS316
Non-Contact Parts	SS304	SS304	SS304
Control System	PLC + HMI	PLC + HMI	PLC + HMI
Frame Construction	SS304	SS304	SS304
