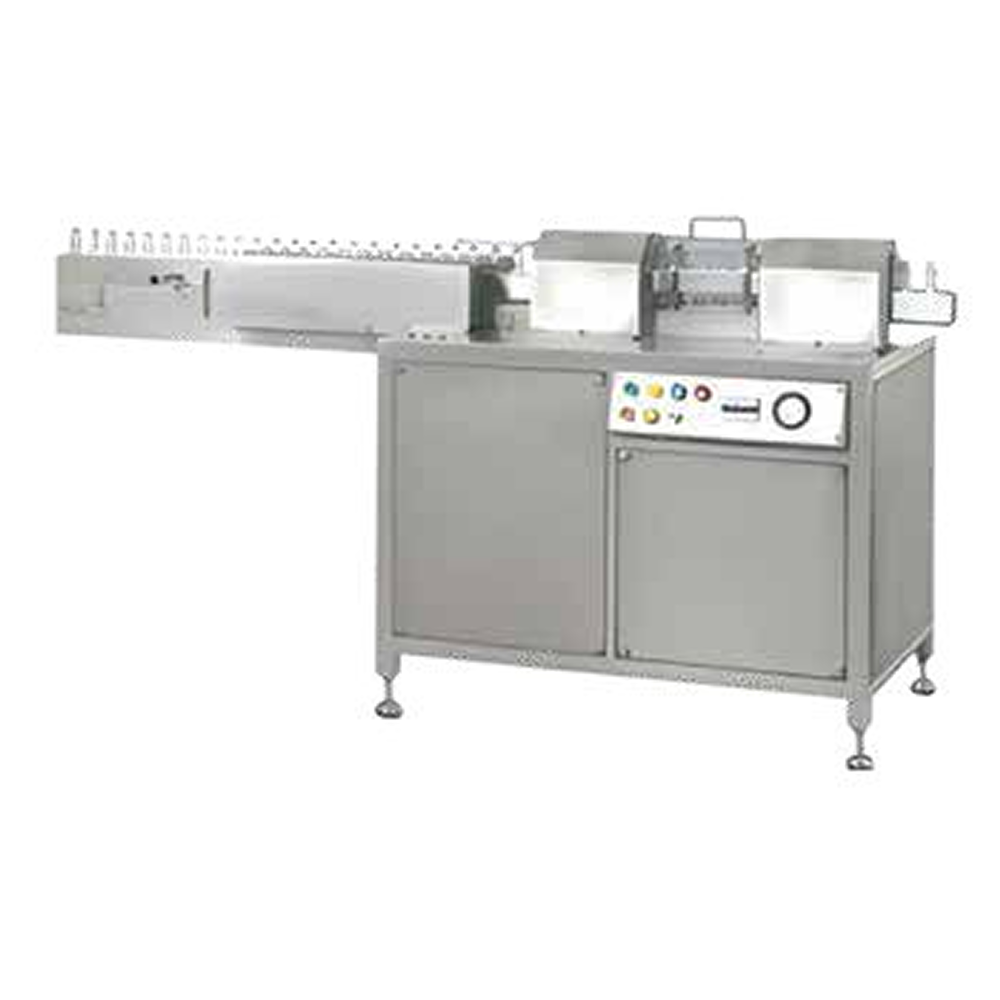

INVERTER TYPE AIR JET CLEANING MACHINE

Atria’s Inverter Type Air Jet Cleaning Machine is an advanced bottle cleaning system designed for efficient internal dust removal prior to filling operations. The machine utilizes high-pressure compressed air jets combined with inverter-controlled speed regulation to ensure precise bottle handling and optimized cleaning performance.

The inverter-based drive system allows controlled acceleration and deceleration, ensuring stable bottle movement, reduced vibration, and synchronized integration with downstream filling machines. Built as per cGMP guidelines with stainless steel construction, the system ensures hygienic operation suitable for pharmaceutical, nutraceutical, and cosmetic packaging lines.

Technical Data

Products Description

Specification	APMIAC-120	APMIAC-240
Output Capacity	Up to 120 BPM	Up to 240 BPM
Cleaning Method	Inverted High-Pressure Air Jet	Inverted High-Pressure Air Jet
Bottle Diameter Range	25 – 90 mm	25 – 90 mm
Bottle Height Range	50 – 200 mm	50 – 200 mm
Air Pressure Requirement	6 – 8 kg/cm²	6 – 8 kg/cm²
Main Motor	0.5 HP	0.5 HP
Suction Blower	0.5 HP	0.5 HP
Power Supply	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz
Construction	SS304	SS304
Control System	PLC + HMI	PLC + HMI
Bottle Inversion Mechanism	Special designed Inverter as per Bottle	Special designed Inverter as per Bottle
