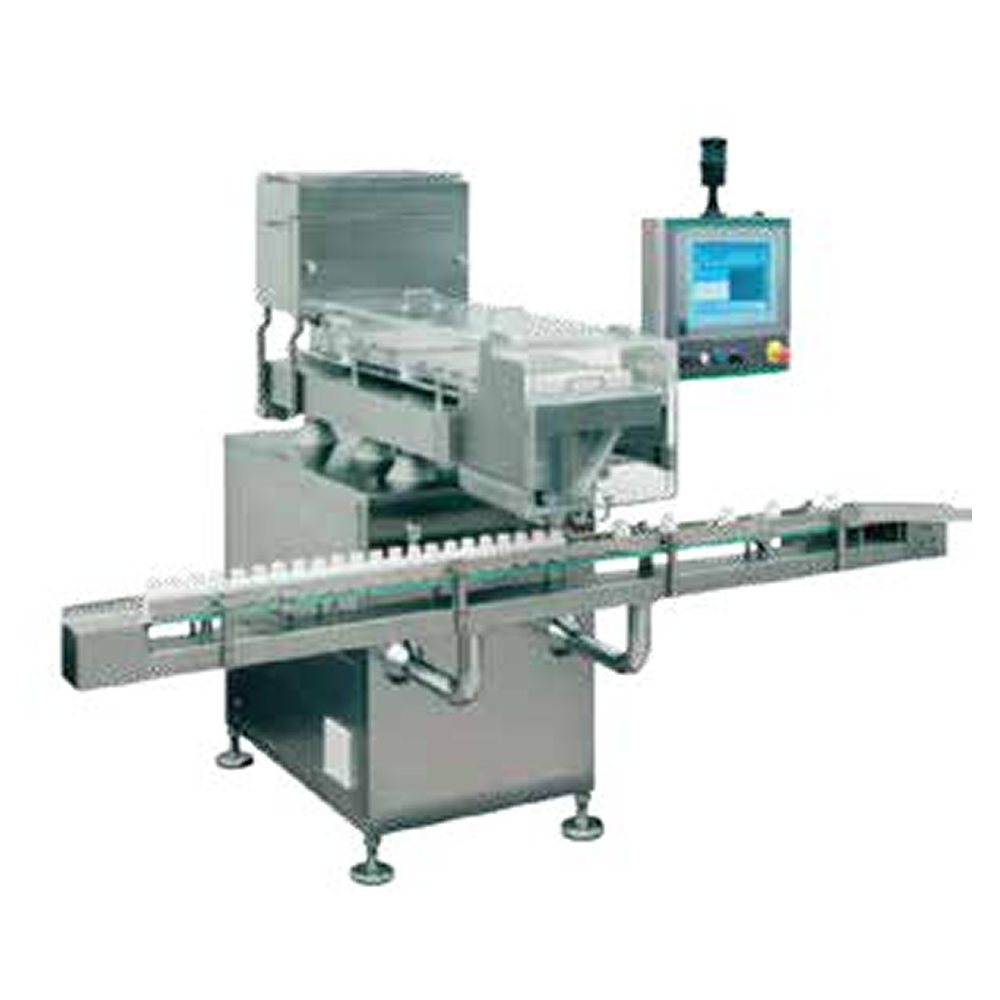

LINEAR VIBRATORY TABLET COUNTING MACHINE
AtriaβsΒ Linear Vibratory Tablet Counting MachineΒ is a high-precision electronic counting system designed for accurate counting of tablets, capsules, caplets, and soft gel capsules at medium to high production speeds. The machine operates using multi-channel vibratory feeders combined with electronic sensor-based counting technology to ensure superior accuracy and product integrity.Β
The linear design ensures smooth product flow, minimal breakage, and consistent counting even for irregular-shaped products. Built with cGMP-compliant stainless steel construction and PLC-based automation, the system integrates seamlessly with bottle feeding, cotton insertion, capping, and labeling machines.Β
This machine is ideal for pharmaceutical andΒ nutraceuticalΒ production environments requiring validated and high-accuracy counting systems.
| Specification | APMLTC-4 | APMLTC-6 | APMLTC-8 | APMLTC-12 |
|---|---|---|---|---|
| Output Capacity | Up to 400 CPM | Up to 600 CPM | Up to 800 CPM | Up to 1200 CPM |
| Counting Principle | Electronic Sensor + Vibratory Feed | Electronic Sensor + Vibratory Feed | Electronic Sensor + Vibratory Feed | Electronic Sensor + Vibratory Feed |
| Number of Head | 1 | 1 | 2 | 3 |
| Counting Channels | 4 Channel | 6 Channel | 8 Channel | 12 Channel |
| Counting Range | 1 β 9999 (Adjustable) | 1 β 9999 (Adjustable) | 1 β 9999 (Adjustable) | 1 β 9999 (Adjustable) |
| Product Type | Tablets / Capsules / Soft Gels | Tablets / Capsules / Soft Gels | Tablets / Capsules / Soft Gels | Tablets / Capsules / Soft Gels |
| Counting Accuracy | Β±2 Tablet | Β±2 Tablet | Β±2 Tablet | Β±2 Tablet |
| Bottle Diameter Range | 25 β 120 mm | 25 β 120 mm | 25 β 120 mm | 25 β 120 mm |
| Bottle Height Range | 50 β 200 mm | 50 β 200 mm | 50 β 200 mm | 50 β 200 mm |
| Hopper Capacity | 30 β 50 L | 50 β 70 L | 50 β 70 L | 50 β 70 L |
| Power Supply | 415V, 3 Phase, 50 Hz | 415V, 3 Phase, 50 Hz | 415V, 3 Phase, 50 Hz | 415V, 3 Phase, 50 Hz |
| Conveyor Height | 850 Β± 25 mm | 850 Β± 25 mm | 850 Β± 25 mm | 850 Β± 25 mm |
| Frame Construction | SS304 | SS304 | SS304 | SS304 |
| Product Contact Parts | SS316 | SS316 | SS316 | SS316 |
| Control System | PLC + HMI | PLC + HMI | PLC + HMI | PLC + HMI |
ApplicationsΒ
- Pharmaceutical tablet counting linesΒ
- Capsule and soft gel countingΒ
- NutraceuticalΒ supplement packagingΒ
- Herbal andΒ AyurvedicΒ tablet bottlingΒ
- High-accuracy validated production environmentsΒ
Optional FeaturesΒ
- No Bottle β No Count Logic
- Automatic Bottle Rejection for Under/Over Count
- Safety Interlock
- Transfer Conveyor Synchronization
- Dust Extraction System
- Vision-based Counting Verification System
- SCADA Integration with Production Data Logging
- 21 CFR Part 11 Compliance
- Anti-Static Treatment System
- Integration with Cotton Inserter, Capping & Labelling MachinesΒ
Β
Why Choose Atria?Β
- High-speed electronic counting with superior accuracyΒ
- Gentle vibratory feeding minimizing product breakageΒ
- Suitable for a wide range of tablet and capsule shapesΒ
- cGMP-compliant hygienic constructionΒ
- Automation-ready for validated pharmaceutical environmentsΒ
- Reliable and consistent performance in high-volume production linesΒ
