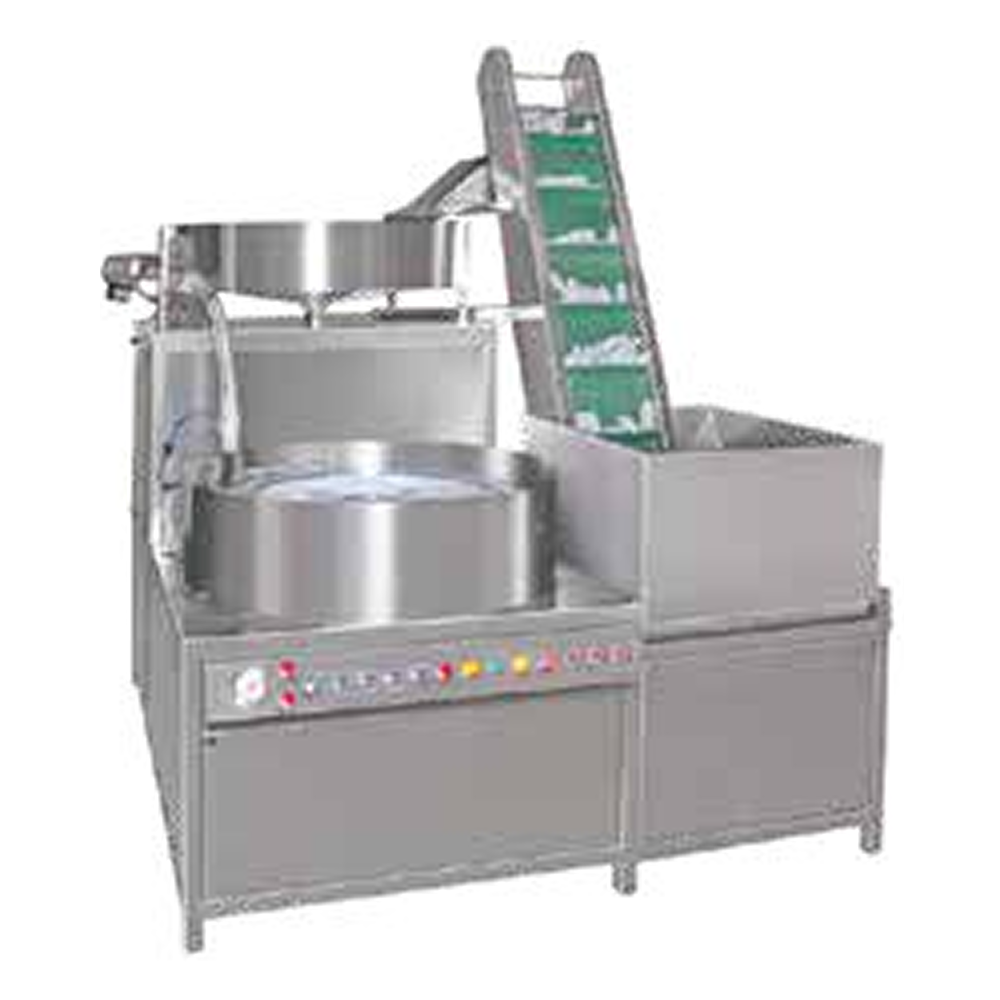

Rotary Unscrambler Machine
AtriaβsΒ Rotary Bottle UnscramblerΒ is a high-speed bottle orientation system engineered for continuous feeding of bottles inΒ medium toΒ high-volume production lines. The machine automatically orients randomly placed bottles and ensures stable upright positioning through a rotary sorting mechanism and precision discharge system, enabling smooth and uninterrupted bottle flow to downstream equipment. Designed for reliable performance and gentle bottle handling, the system integrates seamlessly with automatic filling, capping, and labeling machines in pharmaceutical,Β nutraceutical, cosmetic, and food packaging lines.Β
| Model | APMRUM-60 | APMRUM-120 |
|---|---|---|
| Output Capacity | Up to 60 BPM | Up to 120 BPM |
| Bottle Diameter | 25β90 mm | 25β90 mm |
| Bottle Height | 50β200 mm | 50β200 mm |
| Orientation Mechanism | Rotary Centrifugal | Rotary Centrifugal |
| Air Pressure Requirement | 5β7 kg/cmΒ² | 5β7 kg/cmΒ² |
| Power Supply | 415V, 3 Phase, 50Hz | 415V, 3 Phase, 50Hz |
| Main Motor | 3 HP | 5 HP |
| Frame Material | SS304 | SS304 |
| Control System | PLC + HMI | PLC + HMI |
| Overload Protection | Yes | Yes |
ApplicationsΒ
- High-speed pharmaceutical bottling linesΒ
- Food & beverage packagingΒ
- Cosmetic production linesΒ
Optional FeaturesΒ
- PLC based recipe managementΒ
- Quick size changeover kitΒ
- 21CFR PART 11 SCADA IntegrationΒ
- Vision inspection system integrationΒ
- Dust extraction or ionized air moduleΒ
- Online rejection systemΒ
Why Choose Atria?Β
- Complete bottle handlingΒ integration with filling & capping linesΒ
- cGMP compliant SS304/SS316 constructionΒ
- High efficiency dust & particle removal systemsΒ
- Stable bottle handling with minimal mechanical stressΒ
- Custom design as per bottle geometryΒ
- Long operational life with minimal maintenanceΒ
