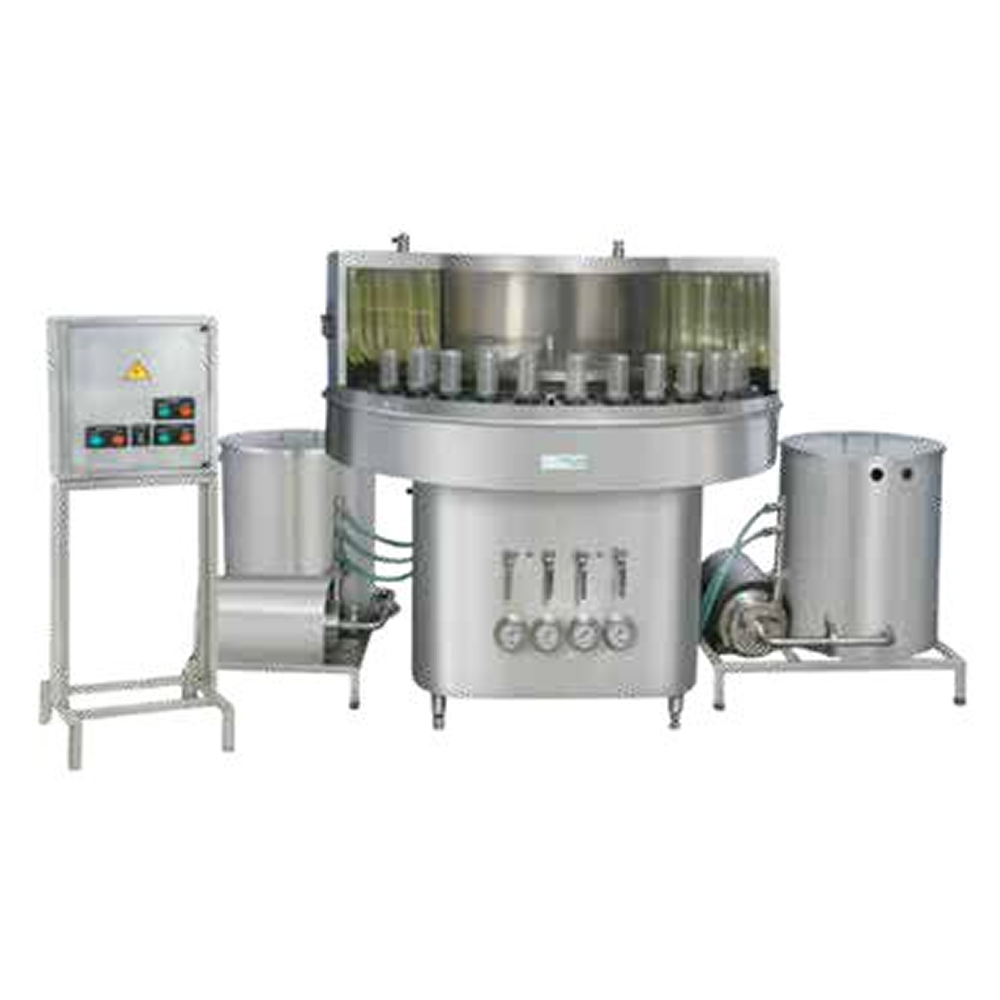

Semi-Automatic Bottle Washing Machine

Atria’s Semi-Automatic Bottle Washing Machine is a compact and economical cleaning solution designed for internal and external washing of bottles prior to filling operations. The machine is suitable for low to medium production capacities where manual bottle loading is preferred while maintaining hygienic cleaning standards.

The system performs multi-stage washing using compressed air and water rinsing to remove dust, foreign particles, and contaminants from bottles. Built with stainless steel construction and easy operation controls, it is ideal for pharmaceutical, nutraceutical, and small-scale production environments requiring reliable cleaning performance.

Technical Data

Products Description

Specification	APMSBW-32	APMSBW-64	APMSBW-96
Operation Type	Semi-Automatic	Semi-Automatic	Semi-Automatic
Bottle Loading	Manual	Manual	Manual
Washing Stations	2 – 4	2 – 4	2 – 4
Washing Media	Water + Air	Water + Air	Water + Air
Bottle Diameter Range	25 – 90 mm	25 – 90 mm	25 – 90 mm
Bottle Height Range	50 – 200 mm	50 – 200 mm	50 – 200 mm
Air Pressure Requirement	5 – 7 kg/cm²	5 – 7 kg/cm²	5 – 7 kg/cm²
Water Pressure Requirement	1 – 2 kg/cm²	1 – 2 kg/cm²	1 – 2 kg/cm²
Main Motor	1 HP	1 HP	1 HP
Power Supply	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz
